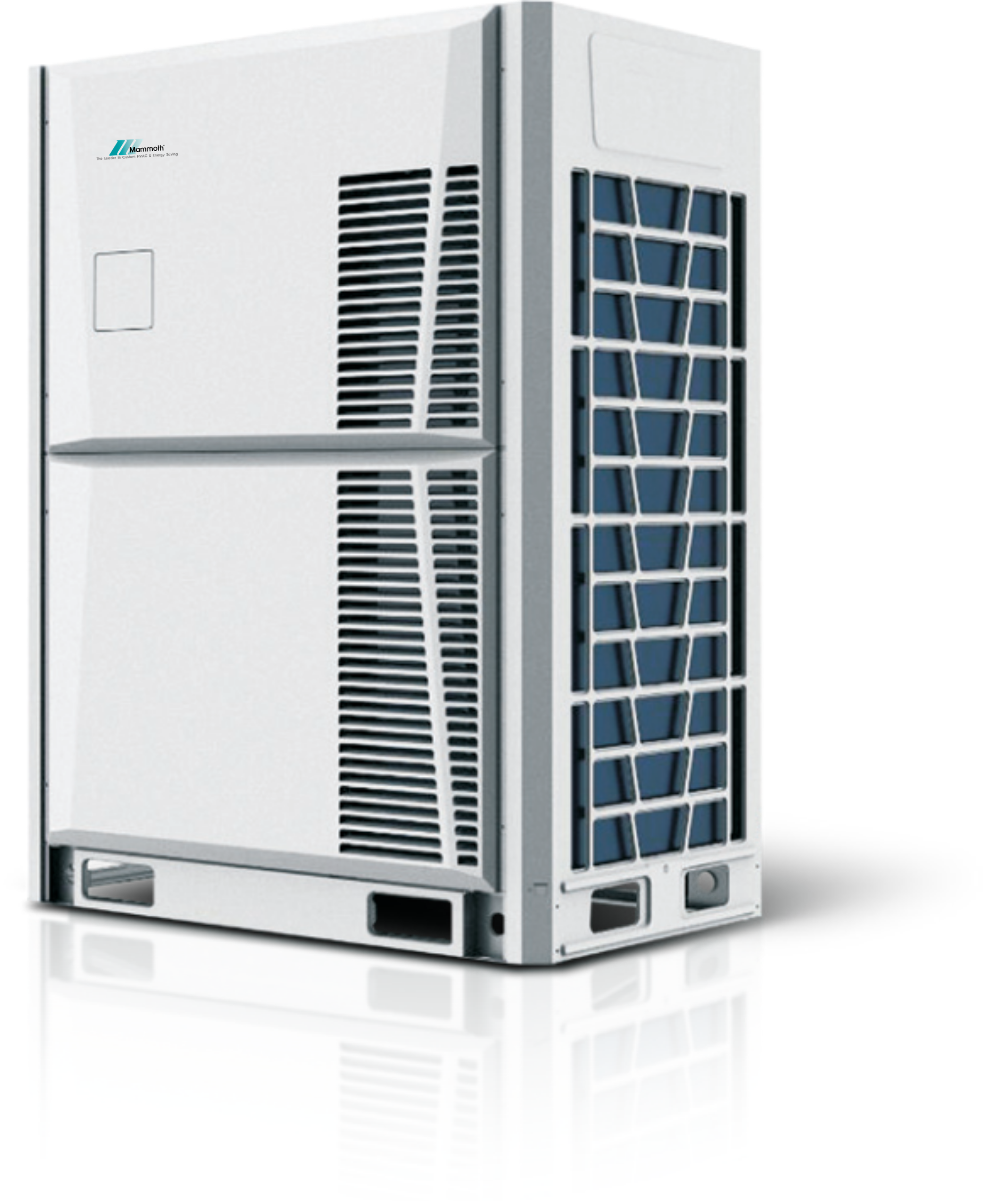

The DC Inverter VRF (Variable Refrigerant Flow) System is an advanced air-conditioning solution designed for commercial buildings, hotels, hospitals, offices, and large residential projects. It uses full DC inverter technology with intelligent capacity control to deliver precise cooling and heating, high energy efficiency, low operating noise, and reliable performance even under extreme ambient conditions. This system supports multiple indoor units connected to a single outdoor unit, allowing flexible design, long piping distances, and independent zone control. The catalogue highlights the use of enhanced vapor injection compressor technology, DC inverter compressor & fan motors, advanced oil management, intelligent defrosting, and R410A refrigerant, making the system suitable for both comfort and energy-saving applications.
Special Features
Full DC inverter compressor and DC fan motors
Enhanced Vapor Injection (EVI) technology for stable heating in low ambient temperature
High EER & COP for superior energy efficiency
Long piping length and large height difference support
Modular combination of outdoor units for higher capacity
Intelligent oil balance & refrigerant distribution control
Low noise operation with silent/night mode
Wide operating temperature range (cooling & heating)
Automatic addressing and self-diagnosis
Multiple control options (wired controller, central controller, BMS support)
Environment-friendly R410A refrigerant
Multiple indoor unit types (cassette, ducted, wall mounted, floor standing, etc.)
Important Advantages
Energy Savings: Inverter control adjusts capacity based on real demand.
Design Flexibility: Long piping and modular outdoor units simplify large projects.
Comfort Control: Stable temperature with minimal fluctuation.
Reliability: Backup operation and intelligent protection functions.
Easy Maintenance: Fault code display, service window design, and monitoring support.
Scalability: Suitable for small to very large buildings.
Download the catalog to view specifications for other models.
| Parameter | Specification |
|---|---|
| System Type | DC Inverter VRF (Variable Refrigerant Flow) |
| Compressor Type | DC Inverter Scroll Compressor with Enhanced Vapor Injection (EVI) |
| Refrigerant | R410A (Eco-friendly) |
| Power Supply | 380–415V / 3Ph / 50Hz or 60Hz (model dependent) |
| Cooling Capacity Range | 8 HP to 88 HP (modular combination) |
| Heating Capacity Range | Up to 100% rated capacity with EVI support |
| Energy Efficiency | High EER & COP (inverter driven, load based operation) |
| Maximum Total Piping Length | Up to 1000 m (system dependent) |
| Maximum Actual Piping Length | Up to 200 m (outdoor to farthest indoor unit) |
| Maximum Height Difference | Up to 110 m (outdoor to indoor) |
| Indoor Units per System | Up to 64 units (model dependent) |
| Indoor Unit Types | Cassette (1-way, 2-way, 4-way), Ducted, Wall Mounted, Floor Standing |
| Operating Temperature (Cooling) | -5°C to +52°C (approx.) |
| Operating Temperature (Heating) | -25°C to +24°C (approx.) |
| Noise Level | Low noise design with night silent mode |
| Control Options | Wired controller, Central controller, BMS (Modbus/BACnet optional) |
| Protection Functions | High/Low pressure, overload, phase protection, anti-freeze, compressor protection |
| Defrost System | Intelligent automatic defrosting |
| Oil Management | Automatic oil return and balance control |
| Application | Hotels, Offices, Hospitals, Malls, Commercial Buildings, Apartments |
