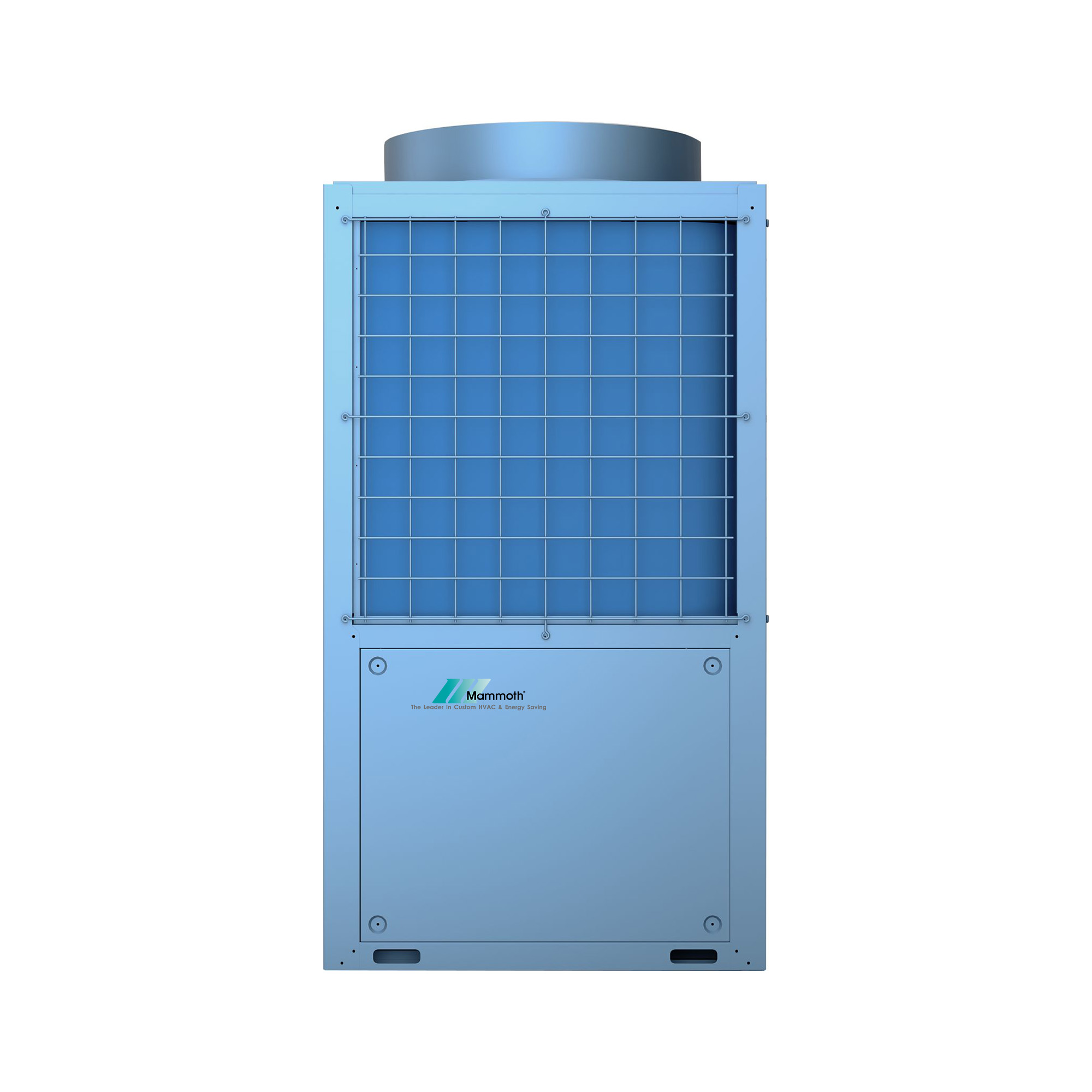

The Mammoth Swimming Pool Heat Pump is built for durability, convenience, and dependable operation. Its titanium tube with PVC casing delivers excellent corrosion resistance, while the spiral tube design maximizes contact with water for efficient heat transfer. Installation is simple, requiring only inlet and outlet water pipes and electrical connections, and the system includes a large LCD controller with an optional 15-meter shielded cable. Accessories such as inlet/outlet connectors, drainage pipes, and rubber gaskets make setup even easier. For reliability, the unit features multiple safety protections for pressure, water flow, and temperature, along with automatic malfunction diagnostics displayed on the controller screen. A built-in four-way valve ensures automatic defrosting. Optional cabinet choices include weather-tested ABS plastic, salt-spray-resistant galvanized steel, and an anti-UV protective cover for added longevity.
Key Highlights
COP Upto 16
Modbus Compatible
Pressure Gauge
Energy Efficiency Class A
Anti-UV Cover
Titanium Heat Exchanger
WIFI Enabled
ABS Body
Product Features
DC Inverter Compressor
12–120Hz wide range inverter covers different capacity loads
Twin rotary reduces vibration and Noise
High Seasonal Efficiency
Soft start algorithm to extent the Longevity of the system
EXV (Electronics Expansion Valve)
Delivers precise & optimized control of refrigerant flow
Enhance the efficiency in different weather conditions
DC Fan Motor
Stepless control
Silent operation to reduces noises
High efficiency
High Efficiency Titanium Condenser
Double circuit Refrigerant pipe, heat exchanging surface increased by 30%
(Additional notes under images — extracted as written)
Wrapped in insulation sponge
Thread Design to Enhance Efficiency of Heat Exchange
Titanium, well
Conventional material, eroded
Excellent Anti-Rust Treatment
Intuitive Touch Screen Interface
Weather Protection
Simple and Intuitive UI
RS-485 Protocol for Long Distance Communication
Smart Home Features – Plug & Play
Supports 60+ Languages!
One Button Connection
Control Panel: Simple and Intuitive; Target and current Tank Temp. at a glance
Weekly Schedule: Customization to Lifestyle, Lower carbon emissions
Download the catalog to view specifications for other models.
| Model | External model | MSPH45C | MSPH55C | MSPH110C |
|---|---|---|---|---|
| Airi 26°C / Water 26°C Humidity 80% |
capacity (kW) | 11.2–45.0 | 13.7–59.0 | 27.5–110.0 |
| power input (kW) | 1.5–7.3 | 2.0–8.4 | 2.9–18.0 | |
| COP | 6.7–6.2 | 6.85–7.0 | 7.6–6.1 | |
| Airi 27°C / Water 26°C Humidity 70% |
capacity (kW) | 7.5–31.2 | 10.3–38.4 | 15.8–77.5 |
| power input (kW) | 1.0–5.6 | 1.4–5.5 | 2.0–13.3 | |
| COP | 4.6–7.2 | 4.7–7.0 | 4.56–7.3 | |
| capacity (kW) Boost | 9.46 | 20.40 | 42.60 | |
| COP Boost | 2.96 | 3.02 | 3.33 | |
| capacity (kW) Smart | 6.22 | 13.40 | 25.80 | |
| COP Smart | 6.66 | 7.05 | 8.15 | |
| capacity (kW) Silent | 6.00 | 12.80 | 25.00 | |
| COP Silent | 6.62 | 6.96 | 8.05 | |
| Airi 35°C / Water 28°C Humidity 80% |
capacity (kW) | 6.8–27.2 | 8.4–37.2 | 15.5–74.4 |
| power input (kW) | 0.8–5.7 | 1.1–7.3 | 2.4–14.8 | |
| EER | 3.45–7.5 | 3.55–7.5 | 3.3–7.3 | |
| Advised Pool Volume | m³ | 140–200 | 200–300 | 300–480 |
| Power supply | V / Ph / Hz | 380–420V~3N~/50 | ||
| Fan speed | RPM | 400–800 | 400–800 | 750 |
| Max power input | kW | 9.85 | 11.65 | 23.25 |
| Max current | A | 17 | 20.1 | 43 |
| Water pipe-in/out | inch | G1-1/2 | G2 | G2 |
| Water Pressure | kpa | 35 | 35 | 35 |
| Water flow | m³/h | 12–18 | 16–24 | 30–45 |
| Refrigerant volume | kg | 2.4 | 3.6 | 7.0 |
| Operating air temperature | °C | –7 ~ 43 | ||
| Min pressure / max pressure | Mpa | 1.5–4/15 | 1.5–4/15 | 1.5–4/15 |
| Package dimensions | L×W×H (mm) | 910×962×1080 | 1362×949×1730 | 2030×920×2100 |
| Unit dimensions | L×W×H (mm) | 901×920×1056 | 1290×757×1590 | 2014×919×1953 |
| Net weight | kg | 185 | 310 | 420 |
| Gross weight | kg | 213 | 343 | 485 |
| Noise at 1m | dB(A) | 47.6–67.1 | 48.3–68.4 | 49.6–71.6 |
| Noise at 10m | dB(A) | 28.3–38.4 | 28.8–39.3 | 30.8–41.6 |
| Compressor brand | Rotary | GMCC | Scroll | |
| Compressor type | GMCC | |||
| Water proof level | IPX4 | |||
